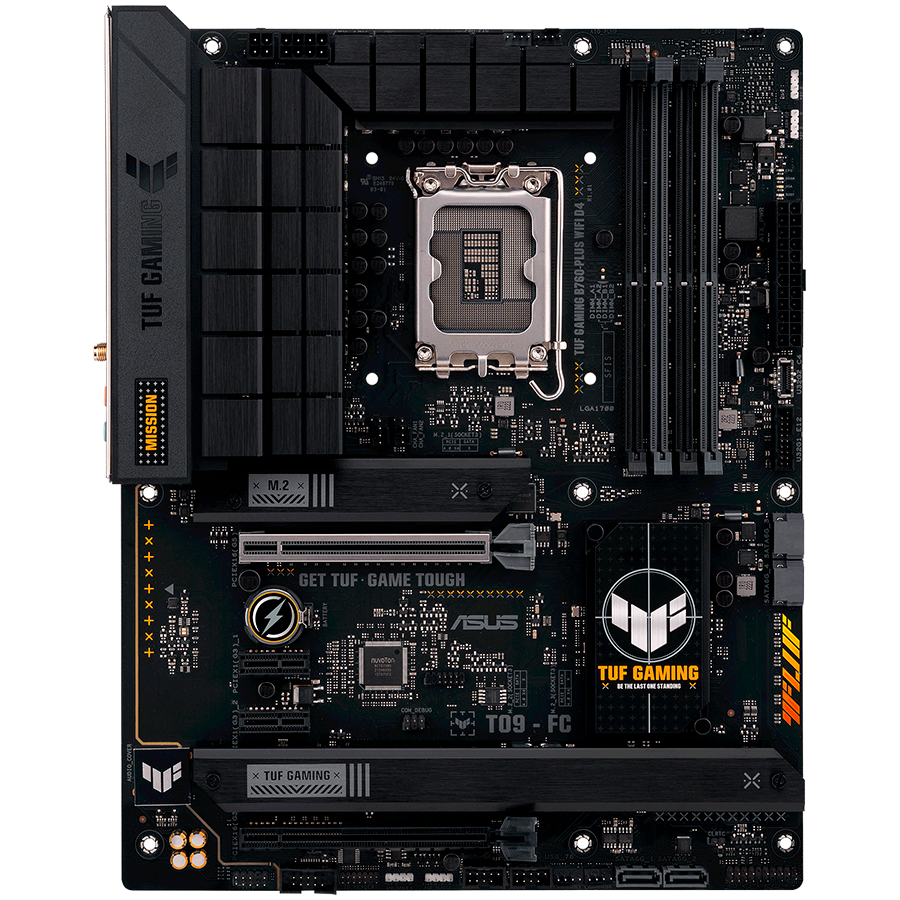

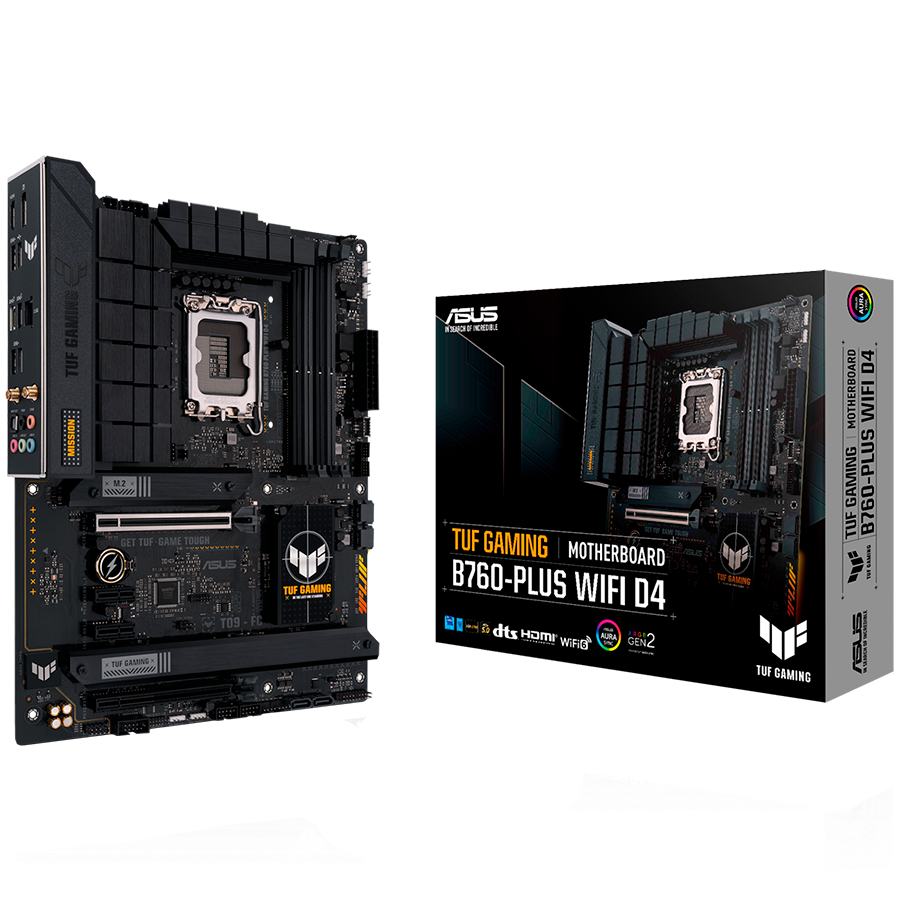

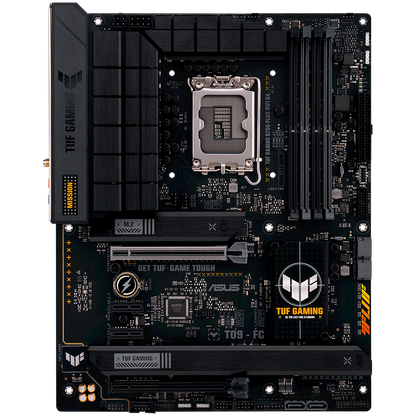

ASUS TUF GAMING B760-PLUS WIFI D4 ATX LGA1700 DDR4
ASUS TUF GAMING B760-PLUS WIFI D4 ATX LGA1700 DDR4
Regular price
Dhs. 571.95 AED
Regular price
Sale price
Dhs. 571.95 AED
Shipping calculated at checkout.
All Price are inclusive of VAT*
Couldn't load pickup availability
| Chipset | Intel B760 |
| Supports Central Processor Unit | Intel 12th Gen Processors Intel 13th Gen Processors |
| CPU Socket Standard | Socket 1700 |
| Architecture Features | Intel Turbo Boost Technology 2.0 Intel Turbo Boost Max Technology 3.0 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR4 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity | 192 GB |
| Memory Slot Total Quantity | 4 |
| Provides Error Checking Method | Non-ECC |
| Memory Features | Two DDR Channels Unbuffered XMP OptiMem II |
| Integrated |
Storage Controller: SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (3 x M.2 (Key M)) Wi-Fi Controller: |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Data Width | 24-bit |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Data Link Protocol Supports | 2.5 Gbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x16 | 1 |
| PCI Express 3.0 x1 | 2 |

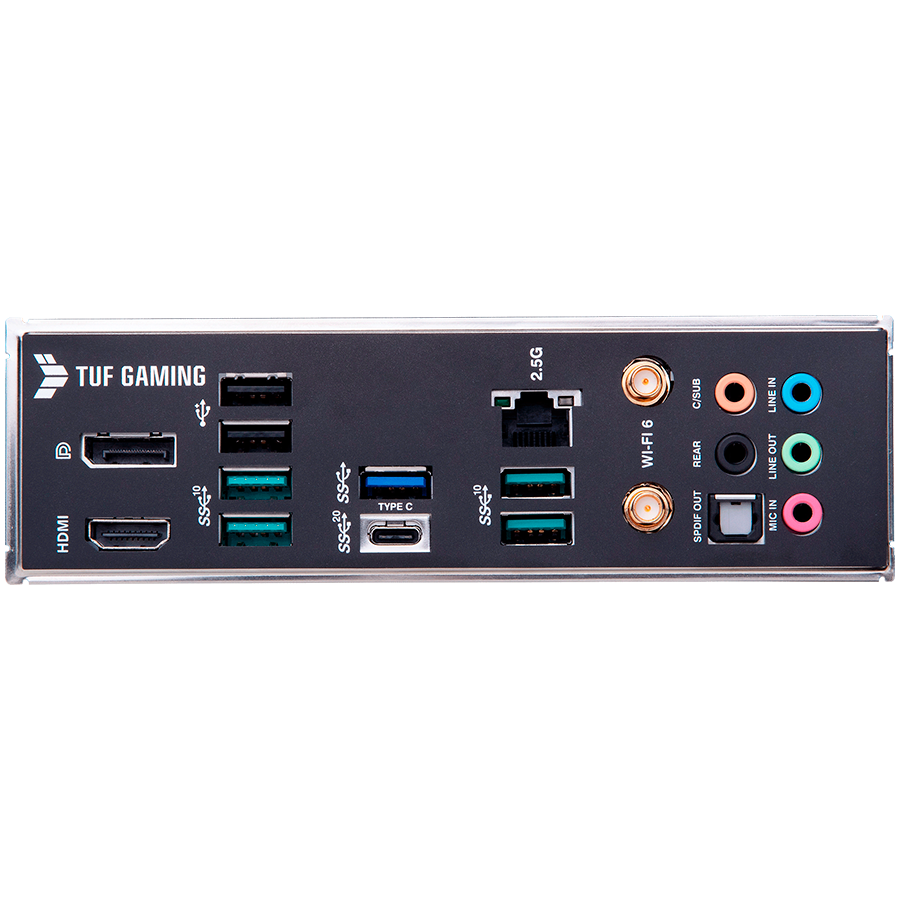

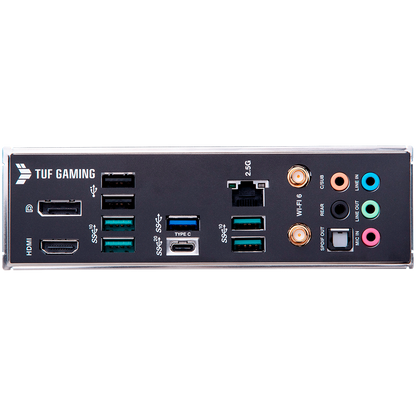

| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)) |
| USB 3.2 Gen 1 | 3 (USB 3.2 (type A)) |
| USB 2.0 | 1 (USB 2.0 (type A)) |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio Interface | 5 (3.5-mm minijack) |
| S/PDIF-out Optical | 1 |
| BIOS Type | AMI |
| BIOS Features | ASUS CrashFree BIOS 3 UEFI PXE boot 128 Mb Flash ROM ASUS EZ Flash 3 |
| Wake up/Sleep | Wake on LAN |
| Power Connectors Type | 24+8+4 pin |
| Supported Operating System | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Included Accessories | Stickers User Guide Screws WiFi antenna |
| Form Factor | ATX |
| Height (mm) | 244 mm |
| Width (mm) | 305 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 353 mm |
| Pack Width (mm) | 273 mm |
| Pack Height (mm) | 68 mm |
| Pack Weight Brutto (kg) | 1.983 kg |
| Pack Weight Netto (kg) | 1.153 kg |
| Box Weight Brutto (kg) | 9.915 kg |
| Packs in Box | 5 |
| Package Type | Retail |
| EAN Code | 4711387009499 |
