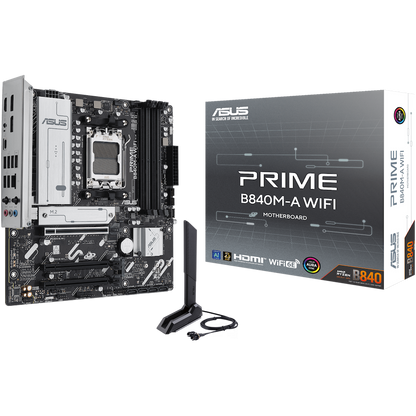

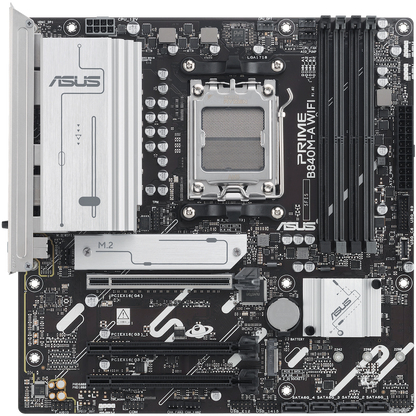

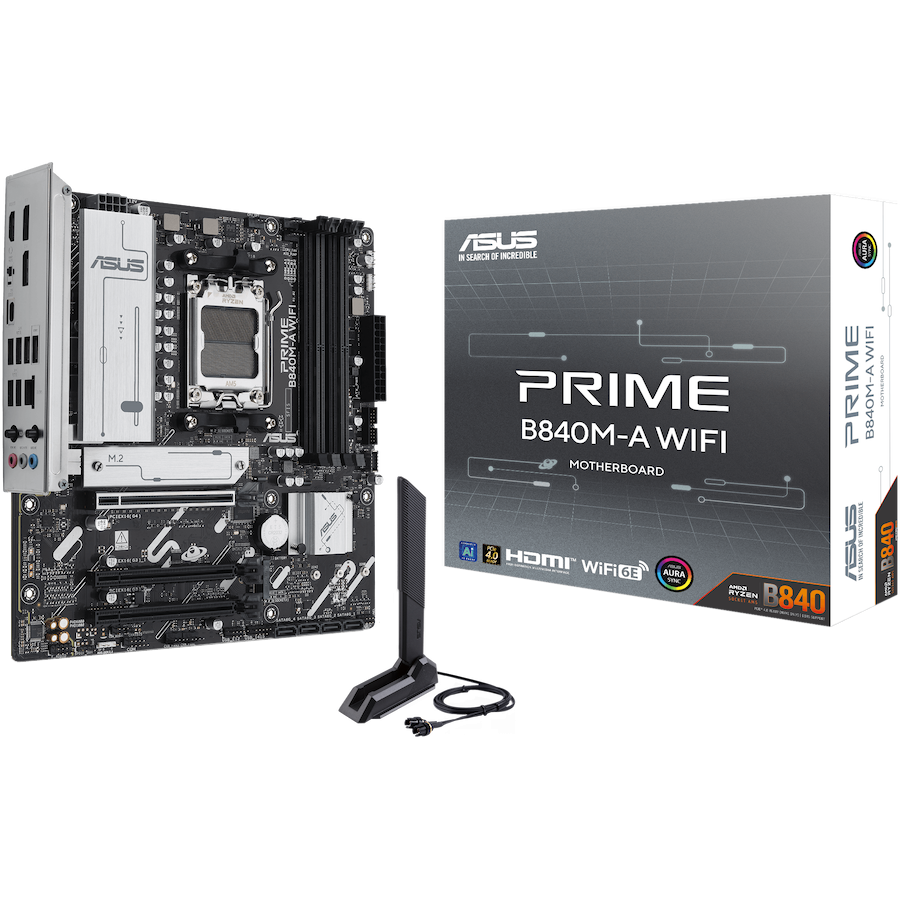

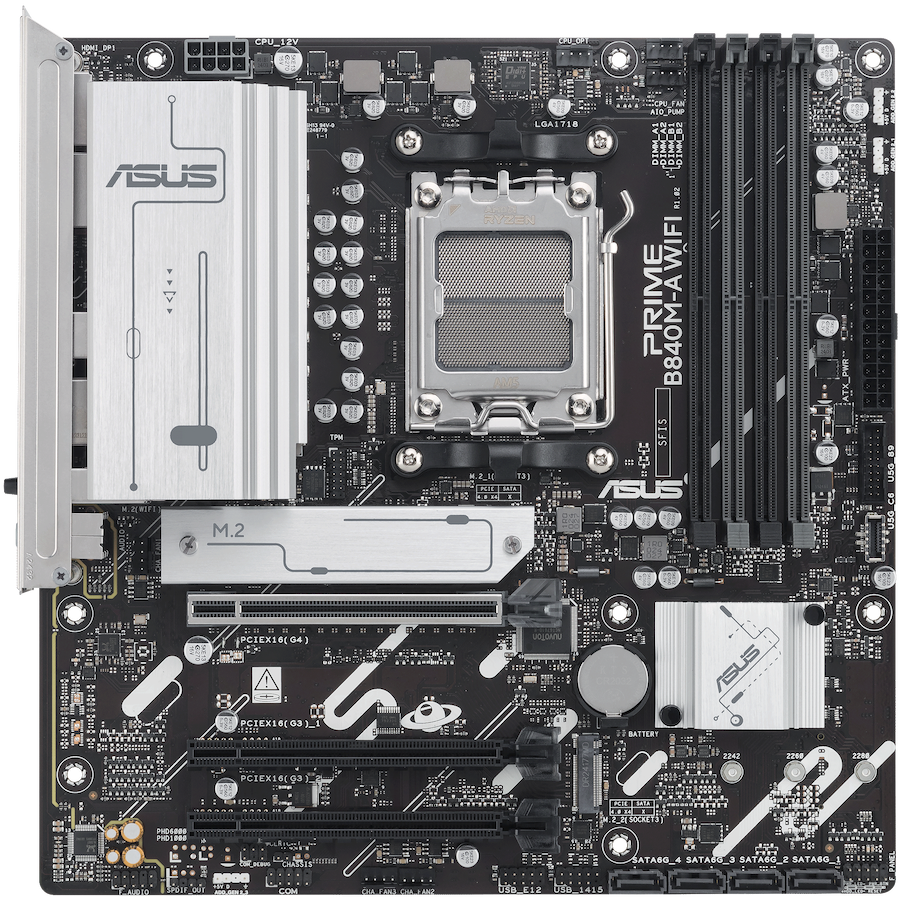

ASUS PRIME B840M-A WIFI mATX AM5 DDR5
ASUS PRIME B840M-A WIFI mATX AM5 DDR5
Regular price
Dhs. 430.49 AED
Regular price
Sale price
Dhs. 430.49 AED
Shipping calculated at checkout.
All Price are inclusive of VAT*
Couldn't load pickup availability
| Chipset | AMD B840 |
| Supports Central Processor Unit | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| CPU Socket Standard | Socket AM5 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR5 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 7600MHz |
| Maximum Installable System Memory Storage Capacity | 192 GB |
| Memory Slot Total Quantity | 4 |
| Provides Error Checking Method | ECC/Non-ECC |
| Memory Features | Two DDR Channels Unbuffered AMD EXPO |
| Integrated |
Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCI Express 3.0 x4 (1 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) |
| Plug-in-card |
Wi-Fi Controller: |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Data Width | 24-bit |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Data Link Protocol Supports | 2.5 Gbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x16 | 2 |

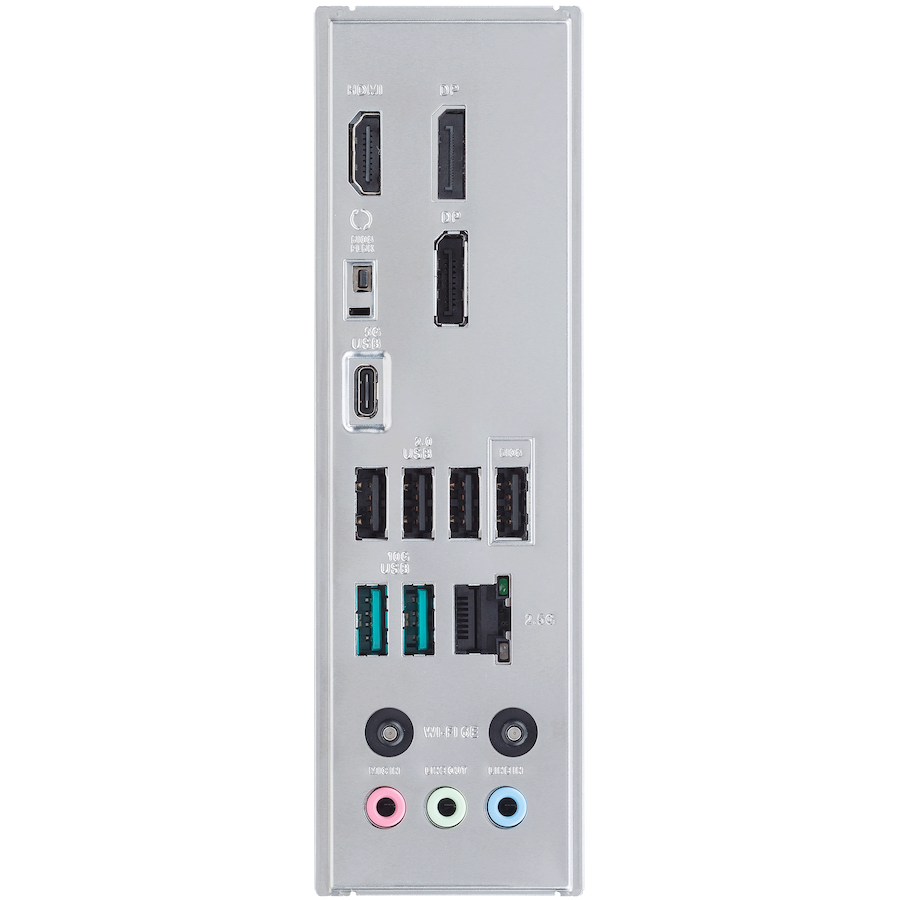

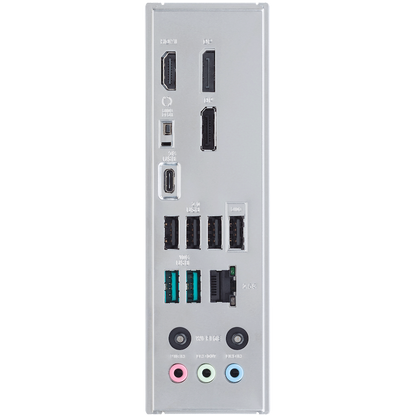

| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)) |
| USB 3.2 Gen 1 | 1 (USB 3.2 (type C)) |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| DisplayPort | 2 |
| HDMI | 1 (HDMI (Type A)) |
| Wi-Fi Antenna | 1 |
| LAN | 1 (RJ-45) |
| Audio Interface | 3 (3.5-mm minijack) |
| BIOS Type | AMI |
| BIOS Features | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM |
| Wake up/Sleep | Wake on LAN |
| Power Connectors Type | 24+8 pin |
| Supported Operating System | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Included Accessories | Quick Start Guide Screws WiFi antenna |
| Form Factor | Micro ATX |
| Height (mm) | 244 mm |
| Width (mm) | 244 mm |
| Depth (mm) | 50 mm |
| Nominal Weight | 0.93 kg |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 275 mm |
| Pack Width (mm) | 275 mm |
| Pack Height (mm) | 68 mm |
| Pack Weight Brutto (kg) | 1.07 kg |
| Pack Weight Netto (kg) | 0.93 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 15.2 kg |
| Retail Packaging Net Weight Carton | 1 kg |
| Retail Packaging Net Weight Plastic | 1 kg |
| Packs in Box | 10 |
| Package Type | Retail |
| EAN Code | 4711387797143 |
