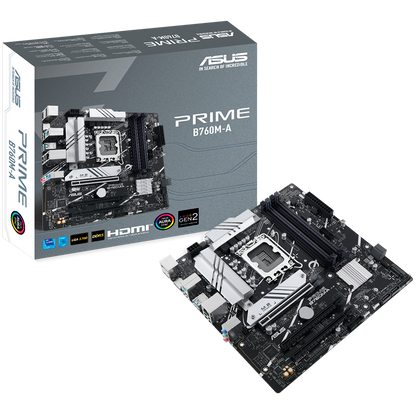

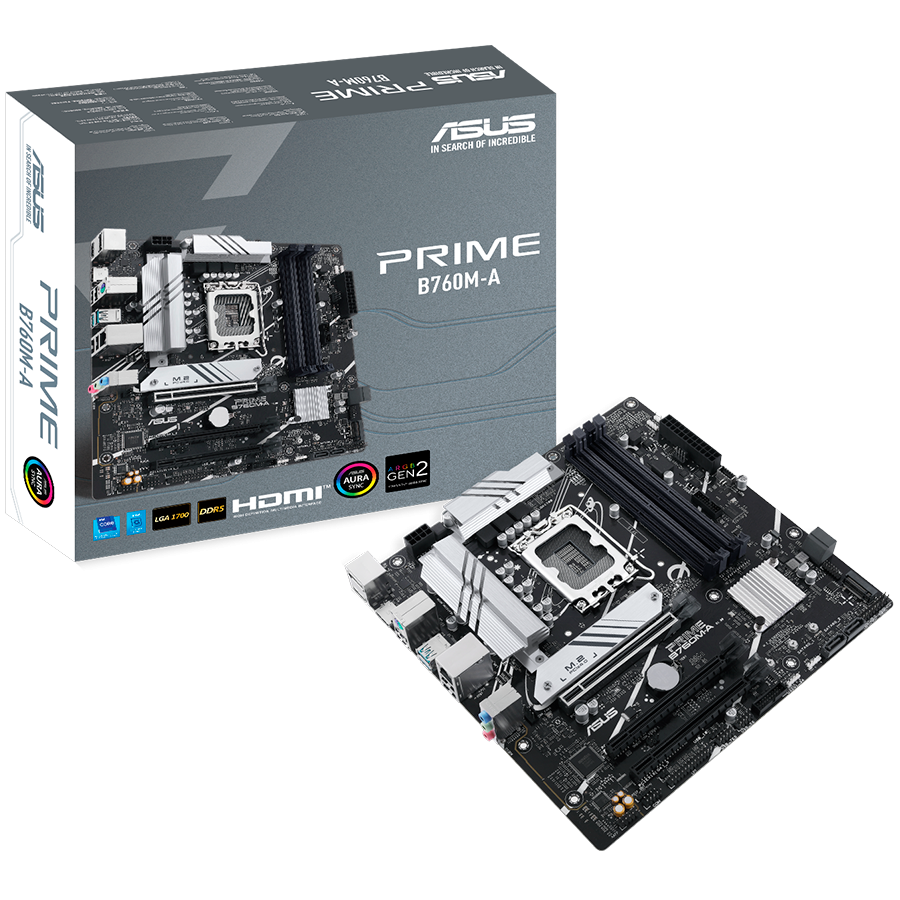

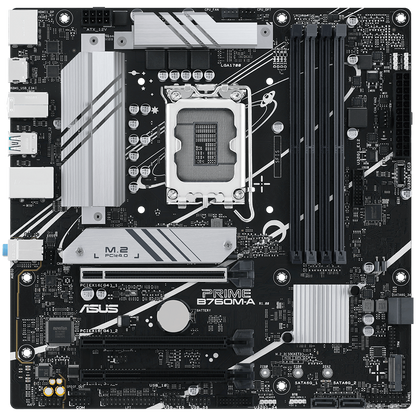

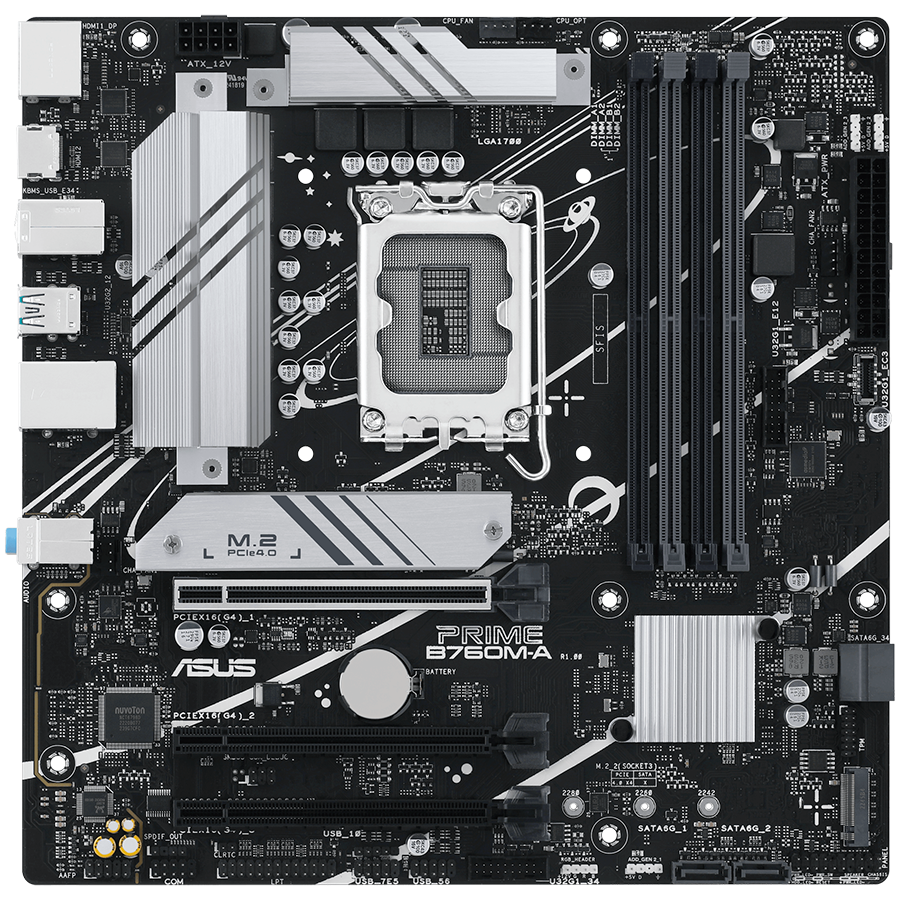

ASUS PRIME B760M-A-CSM LGA1700 mATX MB - Intel B760 4xDIMM DDR5 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet 1xDisplayPort 2xHDMI with Aura Sync support
ASUS PRIME B760M-A-CSM LGA1700 mATX MB - Intel B760 4xDIMM DDR5 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet 1xDisplayPort 2xHDMI with Aura Sync support
Regular price
Dhs. 228.89 AED
Regular price
Sale price
Dhs. 228.89 AED
Shipping calculated at checkout.
All Price are inclusive of VAT*
Couldn't load pickup availability
| Chipset | Intel B760 |
| Supports Central Processor Unit | Intel 12th Gen Processors Intel 13th Gen Processors |
| CPU Socket Standard | Socket 1700 |
| Architecture Features | Intel Turbo Boost Technology 2.0 Intel® Rapid Storage Technology enterprise Intel Turbo Boost Max Technology 3.0 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR5 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 7000MHz |
| Maximum Installable System Memory Storage Capacity | 128 GB |
| Memory Slot Total Quantity | 4 |
| Provides Error Checking Method | Non-ECC |
| Memory Features | Two DDR Channels Unbuffered XMP OptiMem II |
| Integrated |
Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (2 x M.2 (Key M)) |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Data Width | 24-bit |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Data Link Protocol Supports | 2.5 Gbps |

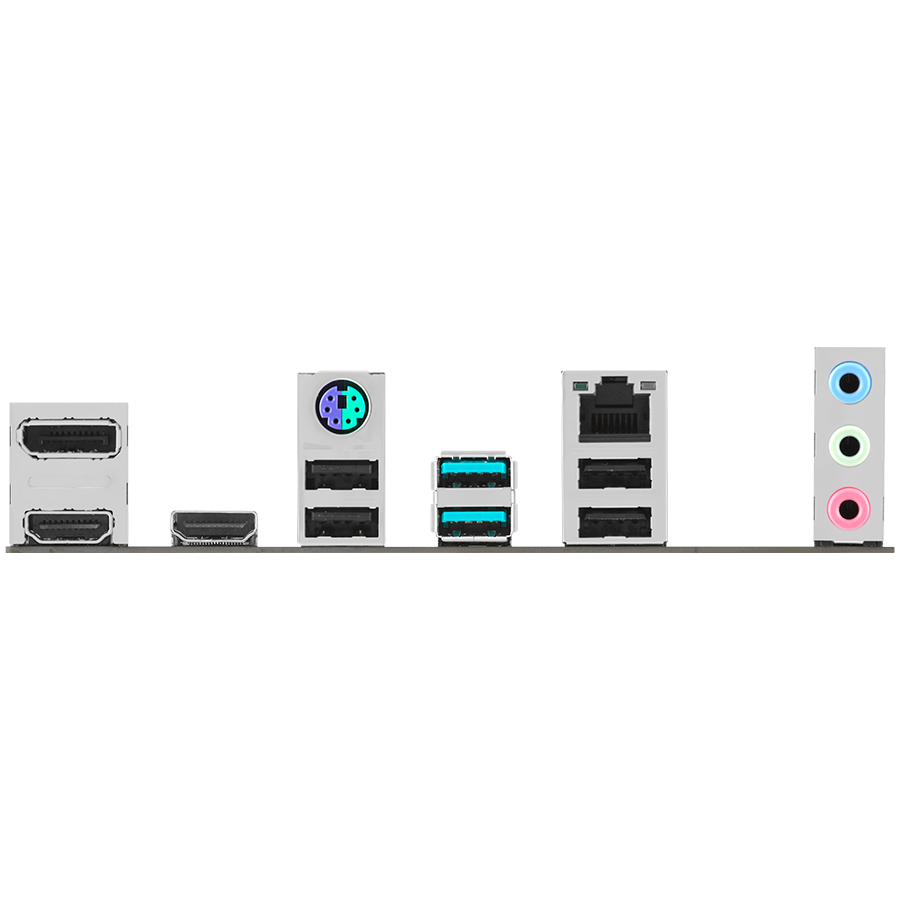

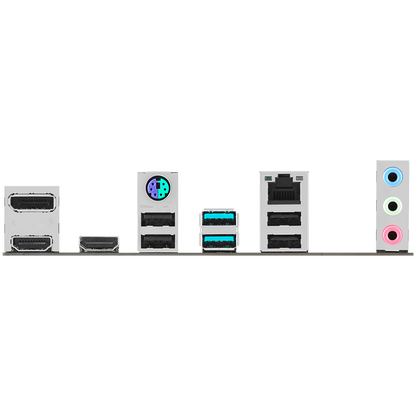

| PCI Express 4.0 x16 | 3 |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)) |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| DisplayPort | 1 |
| HDMI | 2 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio Interface | 3 (3.5-mm minijack) |
| PS/2 | 1 |
| Wi-Fi | 1 |
| BIOS Type | AMI |
| BIOS Features | ASUS CrashFree BIOS 3 UEFI PXE boot 128 Mb Flash ROM ASUS EZ Flash 3 |
| Wake up/Sleep | Wake on LAN |
| Power Connectors Type | 24+8 pin |
| Mainboard Features | RGB LED |
| Supported Operating System | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Included Accessories | I/O Shield User Guide Screws |
| Form Factor | Micro ATX |
| Height (mm) | 244 mm |
| Width (mm) | 244 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 260 mm |
| Pack Width (mm) | 270 mm |
| Pack Height (mm) | 52 mm |
| Pack Weight Brutto (kg) | 1.15 kg |
| Pack Weight Netto (kg) | 0.73 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 11.53 kg |
| Retail Packaging Net Weight Carton | 0.1 kg |
| Retail Packaging Net Weight Plastic | 0.1 kg |
| Packs in Box | 10 |
| Package Type | Retail |
| EAN Code | 4711387140710 |
